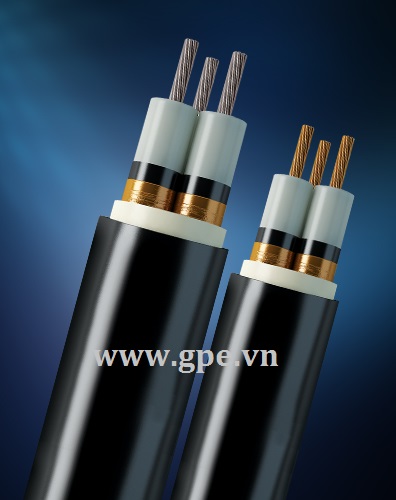

MV CABLE CXV/Sc/PVC 3 COREs UN-ARMOUR

MV CABLE CXV/Sc/PVC 3 COREs UN-ARMOUR

Product code: MV CABLE CXV/SC/PVC THREE CORE

- Structure - Copper strading conductor
- Semi-conductive PVC
- XLPE compound insulation
- Semi insulation PVC
- Copper tape or copper wire shield
- Outer sheath PVC
- Number core 3 cores
- Conductor dimension (mm2) 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2
- Voltage 1.8/3(3.6)1kV or  3.6/6(7.2)kV or:  6/10(12)kV or  12/20(24)kV
- Using/ instalation On cable tray or into HDPE conduit
- Applicable standard IEC 60502-2, IEC 60228
- Length package per standard 250 500m/ bobbin (drum) base on cable size
- Remark Some situation cable shall be requested use WBC (water blocking)
