0,6/1kV Cu/XLPE/PVC

0,6/1kV Cu/XLPE/PVC

Product code: CXV

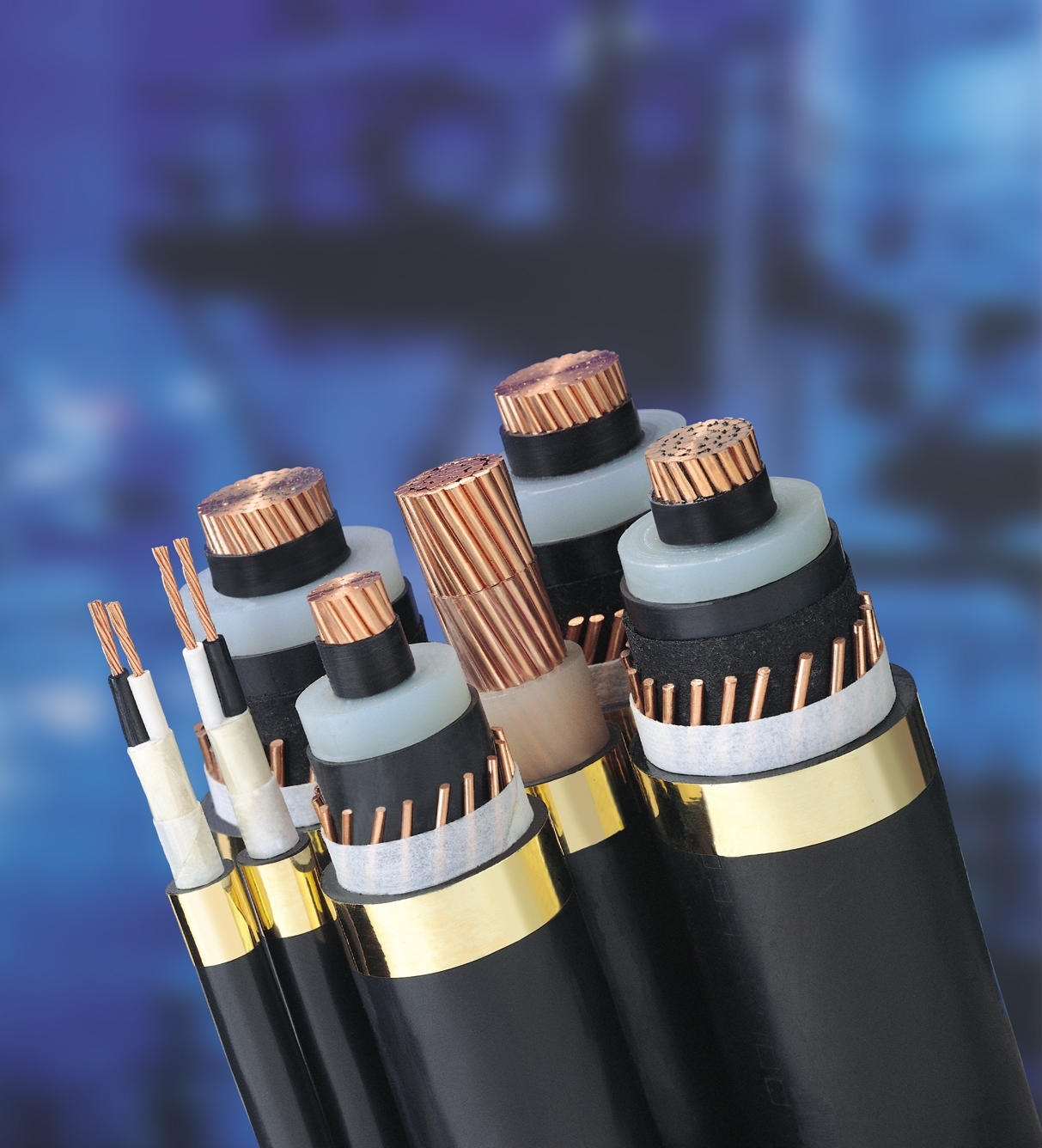

XLPE Insulated Un-armoured and PVC outer sheath Cable (XLPE/PVC)
Standard Conforms IEC 60502-1

Single Core
Conductor Nominal Area Thick of insulation Outer Sheath Thickness Approx. Overall diameter Approx. Cable Weight Standard Length Per Drum
mm2 mm mm mm Kg / Km m
1.5 0.7 1.4 6.3 50 500
2.5 0.7 1.4 6.7 70 500
4 0.7 1.4 7.2 90 500
6 0.7 1.4 7.8 110 500
10 0.7 1.4 9.4 150 500
16 0.7 1.4 10.0 210 500
25 0.9 1.4 12.0 310 500
35 0.9 1.4 13.0 410 500
50 1.0 1.4 14.5 530 500
