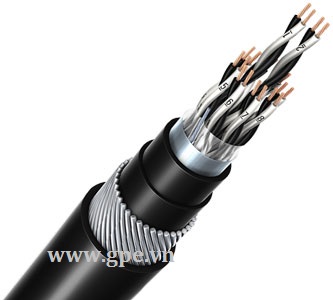

LiOA Instrument cables

LiOA Instrument cables

Product code: Cu/PVC/IS/OS/SWA/FR-PVC

- Structure +Conductor: Copper strading
+Mica tape or not mica tape
+ Insulation: PVC
+ Pair/ Triad shielded at Aluminized Myla Tape And Tinned Copper Drain wire
'+ Armouring: SWA-Steel wire armouring
+ Shields: Copper tape or copper braid shield or NONE
+ Outer sheath: PVC or FR-PVC
- Number core 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37 cores
- Conductor dimension (mm2) 0.5mm2, 0.75mm2, 1mm2, 1.5mm2, 2.5mm2,  4mm2, 6mm2, 10mm2, 16mm2
- Voltage 0,6/1kV or 300/500V
- Using/ instalation On cable tray
- Applicable standard IEC 60502-1, IEC 60332, IEC 60331
- Length package per standard 1.000-2.000m/ bobbin (drum) base on cable size
- Remark Coulor: Black or Any colour

Others

Cu/PVC ... 0.6/1kV
Cu/PVC ... 0.6/1kV
- Structure Copper stranding conductor, PVC insulation -...
0,6/1kV Cu/XLPE/PVC
0,6/1kV Cu/XLPE/PVC
XLPE Insulated Un-armoured and PVC outer sheath Cable (XLPE/PVC) Standard Conforms IEC...
0,6/1KV - Cu/XLPE/DSTA(SWA)/FR-PVC (LSHF) 2C, 3Cx,...
0,6/1KV - Cu/XLPE/DSTA(SWA)/FR-PVC (LSHF) 2C, 3Cx,...
Structure: 0,6/1kV CXV/DSTA(SWA)/FR-PVC(LSHF) 2C, 3C,.. Conductor : Cu (Al), XLPE...
Cable Cu/XLPE/PVC single core...0.6/1kV
Cable Cu/XLPE/PVC single core...0.6/1kV
- Structure Copper strading conductor, XLPE insulation and outer sheath...
Cable Cu/XLPE/PVC multi cores 0,6/1kV
Cable Cu/XLPE/PVC multi cores 0,6/1kV
- Structure Copper strading conductor, XLPE insulation and outer sheath...
Cu/PVC/PVC...0.6/1kV
Cu/PVC/PVC...0.6/1kV
- Structure Copper strading conductor, PVC insulation and outer sheath...
MV CABLE CXV/DATA(AWA) SINGLE CORE ARMOUR
MV CABLE CXV/DATA(AWA) SINGLE CORE ARMOUR
- Structure - Copper strading conductor - Semi-conductive PVC -...
MV CABLE CXV/S/PVC SINGLE CORE
MV CABLE CXV/S/PVC SINGLE CORE
- Structure - Copper strading conductor - Semi-conductive PVC -...
CABLE CXV/DSTA(SWA) MULTI CORE- 0.6/1kV
CABLE CXV/DSTA(SWA) MULTI CORE- 0.6/1kV
- Structure - Copper strading conductor - XLPE and PVC insulation ...
CABLE CXV/DATA(AWA)/PVC single CORE-0.6/1kV
CABLE CXV/DATA(AWA)/PVC single CORE-0.6/1kV
- Structure - Copper strading conductor - XLPE and PVC insulation ...
MV CABLE CXV/Sc/PVC 3 COREs UN-ARMOUR
MV CABLE CXV/Sc/PVC 3 COREs UN-ARMOUR
- Structure - Copper strading conductor - Semi-conductive PVC -...
MV CABLE CXV/DSTA(SWA)/PVC 3C (ARMOUR)
MV CABLE CXV/DSTA(SWA)/PVC 3C (ARMOUR)
- Structure - Copper strading conductor - Semi-conductive PVC -...
CONTROL CABBLE CVV CXV
CONTROL CABBLE CVV CXV
- Structure + Copper strading conductor + PVC or XLPE insulation ...
CONTROL CABLE WITH SHIELDS
CONTROL CABLE WITH SHIELDS
- Structure + Copper strading conductor + PVC or XLPE insulation ...
CABLE Cu/XLPE(PVC)/PVC
CABLE Cu/XLPE(PVC)/PVC
- Structure Copper strading conductor PVC or XLPE insulation ...
FLAME RETARDANT CABLE Cu/XLPE/FR-PVC(LSHF)-MULTY COREs...0.6/1kV
FLAME RETARDANT CABLE Cu/XLPE/FR-PVC(LSHF)-MULTY COREs...0.6/1kV
- Structure Copper strading conductor, XLPE insulation, outer sheath...
FLAME RETARDANT CU/FR-PVC(LSHF)-SINGLE CORE...0.6/1kV
FLAME RETARDANT CU/FR-PVC(LSHF)-SINGLE CORE...0.6/1kV
- Structure Copper strading conductor, outer sheath FR-PVC or LSHF (Low...
FIRE RESISTANT CABLE Cu/MICA/XLPE/FR-PVC(LSHF)-SINGLE CORE 0.6/1kV
FIRE RESISTANT CABLE Cu/MICA/XLPE/FR-PVC(LSHF)-SINGLE CORE 0.6/1kV
- Structure Copper strading conductor, mica tape, XLPE insulation, outer...
FIRE RESISTANT CABLE Cu/mica/FR-PVC(LSHF)
FIRE RESISTANT CABLE Cu/mica/FR-PVC(LSHF)
- Structure Copper strading conductor, mica tape, outer sheath FR-PVC or...
FIRE RESISTANT CABLE Cu/MICA/XLPE/FR-PVC(LSHF) Multi cores 0.6/1kV
FIRE RESISTANT CABLE Cu/MICA/XLPE/FR-PVC(LSHF) Multi cores 0.6/1kV
- Structure Copper strading conductor, mica tape, XLPE insulation, outer...
