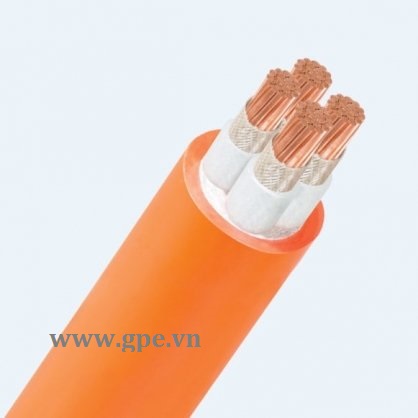

FIRE RESISTANT CABLE Cu/MICA/XLPE/FR-PVC(LSHF) Multi cores 0.6/1kV

FIRE RESISTANT CABLE Cu/MICA/XLPE/FR-PVC(LSHF) Multi cores 0.6/1kV

Product code: Cu/mica/XLPE/FR-PVC (LSHF)

- Structure Copper strading conductor, mica tape, XLPE insulation, outer sheath FR-PVC or LSHF (Low smoke Halogen Free)
- Number core 2 cores
3 cores
4 cores
5 cores
- Conductor dimension (mm2) 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2,  16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2
- Voltage 0,6/1kV
- Using/ instalation On cable tray
- Applicable standard IEC 60502-1, IEC 60332
- Length package per standard 1.000-2.000m/ bobbin (drum) base on cable size
- Remark Coulor: Orange or black
