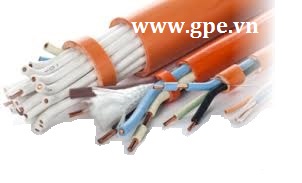

CONTROL CABBLE CVV CXV

CONTROL CABBLE CVV CXV

Product code: Control cable Cu/PVC/PVC or Cu/XLPE/PVC

- Structure + Copper strading conductor
+ PVC or XLPE insulation
+ Shields (id any): braid Shields or copper tape shields
+ Armouring or not: SWA- Steel wire Armouring
+Outer sheath PVC or FR-PVC
- Number core 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37 cores
- Conductor dimension (mm2) 0.5mm2, 0.75mm2, 1mm2, 1.5mm2, 2.5mm2,  4mm2, 6mm2, 10mm2, 16mm2
- Voltage 0,6/1kV or 300/500V
- Using/ instalation On cable tray
- Applicable standard IEC 60502-1
- Length package per standard 1.000-2.000m/ bobbin (drum) base on cable size
- Remark Coulor: Black, or any colour
