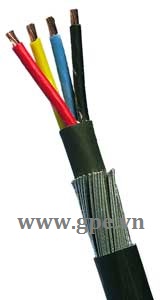

LV CABLE CXV/DSTA(SWA)-... 0.6/1kV

LV CABLE CXV/DSTA(SWA)-... 0.6/1kV

Product code: CXV/DSTA (SWA)

- Structure - Copper strading conductor
- XLPE and PVC insulation
- Armouring: DSTA (Double Steel tape armouring) OR SWA (steel wire armouring)
- Outer sheath PVC
- Number core 1 core or
2 cores or
3 cores
3 cores same conductor size + 1 smaller conductor size
- Conductor dimension (mm2) 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2,  16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2
- Voltage 0,6/1kV
- Using/ instalation On cable tray or into cable conduits or undrground directly
- Applicable standard TCVN 5935
- Length package per standard 500-1.000m/ bobbin (drum) base on cable size

Others

SOLAR CABLE H1Z2Z2-K-...1.5kV DC
SOLAR CABLE H1Z2Z2-K-...1.5kV DC
- Structure Flexible Tinned copper conductor XLPO insulation ...
Solar Cable H1Z2Z2-K
Solar Cable H1Z2Z2-K
Solar DC cable 1500 Voltage to be Tinned copper conductor, insolated by XLPO, out jacket...
CABLE CV 0.6/1KV
CABLE CV 0.6/1KV
- Structure Copper stranding conductor, PVC insulation -...
CABLE CVV 0.6/1kV
CABLE CVV 0.6/1kV
- Structure Copper strading conductor, PVC insulation and outer sheath...
CABLE CXV 0.6/1kV
CABLE CXV 0.6/1kV
- Structure Copper strading conductor, XLPE insulation and outer sheath...
LV CABLE CXV/DATA(AWA)-...0.6/1kV
LV CABLE CXV/DATA(AWA)-...0.6/1kV
- Structure - Copper strading conductor - XLPE and PVC insulation ...
0,6/1kV Cu/XLPE/FR-PVC (LSHF)
0,6/1kV Cu/XLPE/FR-PVC (LSHF)
Structore: 0,6/1kV Cu/XLPE/FR-PVC (LSHF) 1C, 2C,... Copper conductor, XLPE insulated,...
MV CABLE CXV/S-...SINGLE CORE
MV CABLE CXV/S-...SINGLE CORE
- Structure - Copper strading conductor - Semi-conductive PVC -...
MV CABLE CXV/S-DATA(AWA) SIGNLE CORE
MV CABLE CXV/S-DATA(AWA) SIGNLE CORE
- Structure - Copper strading conductor - Semi-conductive PVC -...
MV CABLE CXV/SE-3 COREs
MV CABLE CXV/SE-3 COREs
- Structure - Copper strading conductor - Semi-conductive PVC -...
MV CABLE 24kV CXV/DSTA(SWA)
MV CABLE 24kV CXV/DSTA(SWA)
- Structure - Copper strading conductor - Semi-conductive PVC -...
FIRE RESISTANT CABLE CV/FR 0.6/1kV
FIRE RESISTANT CABLE CV/FR 0.6/1kV
- Structure +Copper strading conductor + Mica tape + Outer sheath...
FIRE RESISTANT CABLE CXV/FR SINGLE CORE- 0.6/1kV
FIRE RESISTANT CABLE CXV/FR SINGLE CORE- 0.6/1kV
- Structure Copper strading conductor, mica tape, XLPE insulation, outer...
FIRE RESISTANT CABLE CXV/FR MULTI COREs- 0.6/1kV
FIRE RESISTANT CABLE CXV/FR MULTI COREs- 0.6/1kV
- Structure Copper strading conductor, mica tape, XLPE insulation, outer...
FLAME RETARDANT CABLE CV/FRT-(SINGLE CORE)-0.6/1kV
FLAME RETARDANT CABLE CV/FRT-(SINGLE CORE)-0.6/1kV
- Structure Copper strading conductor, outer sheath FR-PVC or LSHF (Low...
FLAME RETARDANT CABLE CXV/FRT-...0.6/1kV
FLAME RETARDANT CABLE CXV/FRT-...0.6/1kV
- Structure Copper strading conductor, XLPE insulation, outer sheath...
CONTROL CABLE DVV OR DXV
CONTROL CABLE DVV OR DXV
- Structure Copper strading conductor PVC or XLPE insulation ...
CONTROL CABLE DVV/Sc- DXV/Sc
CONTROL CABLE DVV/Sc- DXV/Sc
- Structure Copper strading conductor PVC or XLPE insulation ...
