Product code: cv

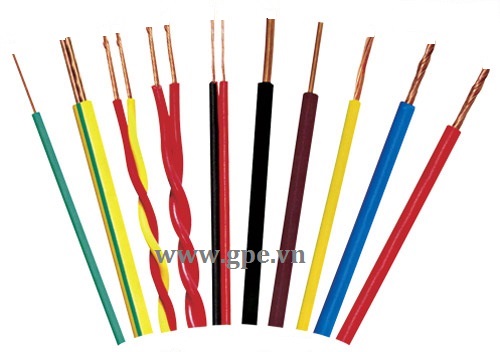

| - Structure | Copper stranding conductor, PVC insulation |
| - Number core | one |
| - Conductor dimension (mm2) | 1.0mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2 |
| - Voltage | 0,6/1kV |
| - Using | For second stage in electric system normally |
| - Applicable standard | IEC 60502-1 |
| - Length package per standard | - 1mm2 ÷ 10mm2: 100m/ coil or: according to customer requirement - Other size: 500m ÷ 2,000m/ bobbin (drum) or: according to customer requirement |
| - Remark | - Coulor: black or others - TER: mean yellow/green |
| Product code | Normal conductor area | Structure | Approx. weight | Length package per standard | |||
| Phase core | N | ||||||
| mm2 | Number wire | Diameter (mm) | Number wire | Diameter (mm) | kg/km | (m/drum) | |
| 0,6/1kV Cu/PVC …mm2 | 1.5 | 7 | 7/0.52 | 23 | 2,000 | ||
| 2.5 | 7 | 7/0.67 | 33 | 2,000 | |||
| 4 | 7 | 7/0.85 | 53 | 2,000 | |||
| 6 | 7 | 7/1.04 hoặc/ or cc | 74 | 2,000 | |||
| 10 | 7 | 7/1.35 hoặc/ or cc | 117 | 2000 or any | |||
| 16 | 7 | cc | 170 | 2,000 | |||
| 25 | 7 | cc | 266 | 2,000 | |||
| 35 | 7 | cc | 360 | 2,000 | |||
| 50 | 19 | cc | 488 | 2,000 | |||
| 70 | 19 | cc | 682 | 2,000 | |||
| 95 | 19 | cc | 944 | 2,000 | |||
| 120 | 37 | cc | 1,176 | 2,000 | |||
| 150 | 37 | cc | 1,454 | 2,000 | |||
| 185 | 37 | cc | 1,812 | 2,000 | |||
| 240 | 61 | cc | 2,369 | 2,000 | |||
| 300 | 61 | cc | 2,968 | 2,000 | |||
| 400 | 61 | cc | 3,778 | 1,000 | |||
| 500 | 61 | cc | 4,824 | 1,000 | |||
| 630 | 127 | cc | 6,175 | 1,000 | |||
 | GPE ELECTRIC ENGINEERING AND EQUIPMENT COMPANY LIMITED Add. : 453 Nguyen Van Luong St., Ward 12 , district 6, HCMC, Vietnam Telephone : (+84) 8 38779113 - HP: (+84) 947 111889 (Zalo, Viber, whatsApp chat) Email : gpe.kd1@gmail.com or/and sales@gpe.vn www.gpe.vn |
