Product code: CXV

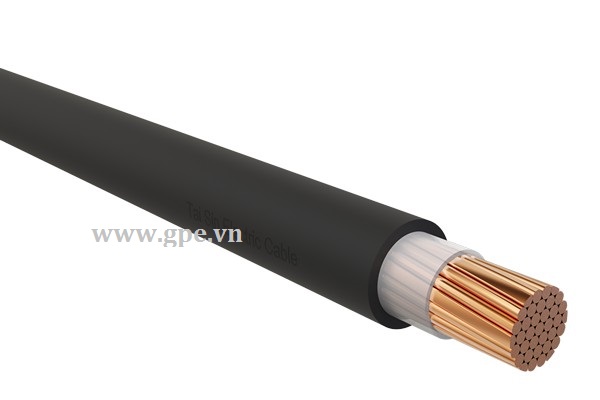

| - Structure | Copper strading conductor, XLPE insulation and outer sheath PVC |
| - Number core | Single core |
| three same conductor size + 1 smaller conductor size | |
| - Conductor dimension (mm2) | 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2 |
| - Voltage | 0,6/1kV |
| - Using/ instalation | On cable tray or into HDPE conduit |
| - Applicable standard | IEC 60502-1 |
| - Length package per standard | 1.000-2.000m/ bobbin (drum) base on cable size |
| Product code | Normal conductor area | Structure | Approx. weight | Length package per standard | |||
| Phase core | N | ||||||
| mm2 | Number wire | Diameter (mm) | Number wire | Diameter (mm) | kg/km | (m/drum) | |
| Cu/XLPE/PVC 1x (conductor size) | 1.5 | 7/0.52 | 46 | ||||
| 2.5 | 7/0.67 | 59 | |||||
| 4 | 7/0.85 | 78 | |||||
| 6 | 7/1.04 or cc | 101 | |||||
| 10 | 7/1.35 or cc | 146 | |||||
| 16 | cc | 202 | Circular compacted | ||||
| 25 | cc | 302 | Circular compacted | ||||
| 35 | cc | 398 | Circular compacted | ||||
| 50 | cc | 524 | Circular compacted | ||||
| 70 | cc | 727 | Circular compacted | ||||
| 95 | cc | 988 | Circular compacted | ||||
| 120 | cc | 1,227 | Circular compacted | ||||
| 150 | cc | 1,514 | Circular compacted | ||||
| 185 | cc | 1,873 | Circular compacted | ||||
| 240 | cc | 2,433 | Circular compacted | ||||
| 300 | cc | 3,033 | Circular compacted | ||||
| 400 | cc | 3,856 | Circular compacted | ||||
| 500 | cc | 4,912 | Circular compacted | ||||
| 630 | cc | 6,328 | Circular compacted | ||||
